Ir Infrared Obstacle Avoidance Sensor Module

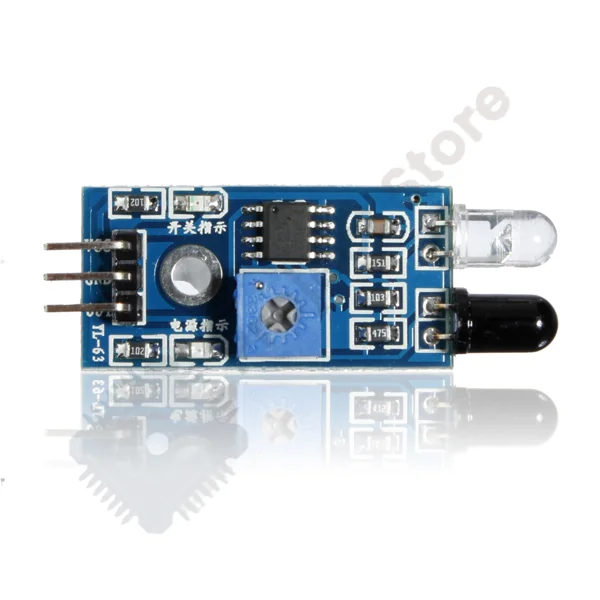

IR Infrared Obstacle Avoidance Sensor Module:
The IR Infrared Obstacle Avoidance Sensor Module is a simple, efficient, and low-cost infrared-based proximity detection module used to detect obstacles and objects without physical contact. It’s widely used in robotics, automation, and IoT systems to enable obstacle detection, line following, and intelligent navigation.
The module works by emitting infrared light from an IR LED and detecting the reflected signal using a photodiode. When an object comes within the adjustable range, the reflected IR light is detected, and the module’s output pin changes state, signaling the presence of an obstacle.
It includes an onboard potentiometer to adjust detection sensitivity and an LM393 comparator for stable digital signal output. The sensor is compatible with Arduino, Raspberry Pi, ESP8266, ESP32, and other microcontroller platforms, making it ideal for robot cars, automatic doors, and DIY automation systems.

Key Features:
Model: IR Obstacle Avoidance Sensor Module
Operating Voltage: 3.3V – 5V DC
Detection Range: 2 cm – 30 cm (adjustable via potentiometer)
Output Type: Digital (0 or 1)
Sensor Type: Infrared emitter and receiver pair
Comparator: LM393
Indicator LEDs: Power and obstacle detection indicators
Interface Pins: VCC, GND, OUT
Dimensions: ~48 mm × 14 mm

Applications:
Obstacle detection and avoidance in robots
Line-following and smart car navigation
Object detection and counting systems
Automatic doors and security alarms
Proximity sensing in automation projects
DIY electronics and educational robotics

Advantages:
Adjustable detection range using potentiometer
Reliable digital output with LM393 comparator
Easy to interface with Arduino and other microcontrollers
Compact, low-cost, and energy-efficient
Ideal for beginners and robotics enthusiasts
